🚀 Implementation¶

We start by deploying a simple Flask application into a Kubernetes cluster without Zero Trust controls enabled. This allows us to establish a security baseline, observe open service-to-service communication, and then incrementally enforce Zero Trust Architecture (ZTA) for comparison.

🔧 Step-by-Step Breakdown¶

🟢 1. Initial Deployment (ZTA Disabled)¶

• Run the following to provision the environment:

task dev

This command automates:

• Kind cluster creation

• Namespace and image setup

• Helm-based app deployment (zta-demo-app)

• Istio installation (without ZTA policies activated)

• The following values in values-local.yaml are disabled by default:

authn:
  enabled: false
authz:
  enabled: false
gateway:
  enabled: false
virtualsvc:
  enabled: false
svcentry:
  enabled: false

✅ This results in unrestricted cross-service communication inside the mesh.

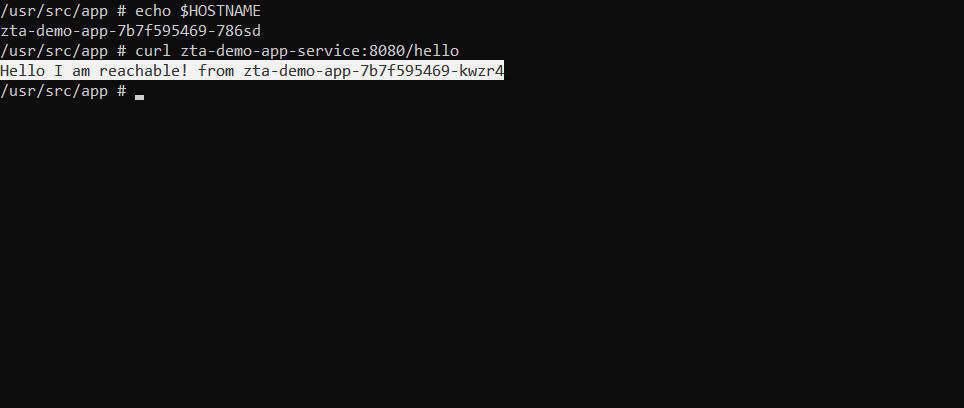

• Inside a pod:

curl zta-demo-app-service:8080/hello

Returns:

Hello I am reachable! from zta-demo-app-<pod-name>

This is expected because there is no authentication or authorization in place. This insecure state means any compromised pod can access internal services freely.

🔒 2. Enabling Zero Trust¶

To activate Zero Trust components, run:

task activate-zta

This uses yq to toggle the following values in values-local.yaml:

authn:
  enabled: true
authz:
  enabled: true
gateway:
  enabled: true
virtualsvc:
  enabled: true
svcentry:
  enabled: true

Then it triggers a Helm upgrade and waits for the pods to be ready.

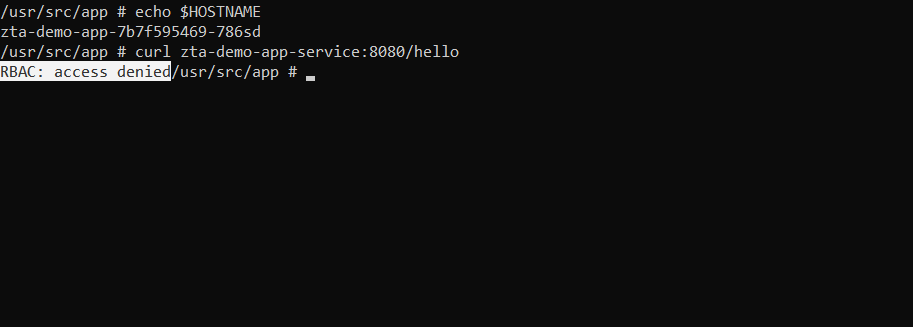

• Now, try the same curl command again from another pod:

curl zta-demo-app-service:8080/hello

Returns:

RBAC: access denied

Zero Trust policies enforced via Istio now block all traffic that is not explicitly allowed.

🔐 3. Access with Token¶

To access the service securely:

• Run:

task get-token

This retrieves a JWT access token using the configured Auth0 credentials and writes it to token.txt.

• Then use it inside the pod:

curl zta-demo-app-service:8080/hello -H "Authorization: Bearer $token"

This returns:

Hello I am reachable! from zta-demo-app-<pod-name>

The request is now authorized, authenticated, and securely handled via mTLS and policy rules.

⚖️ Performance Comparison¶

We use curl with the -w flag to compare the latency introduced by ZTA.

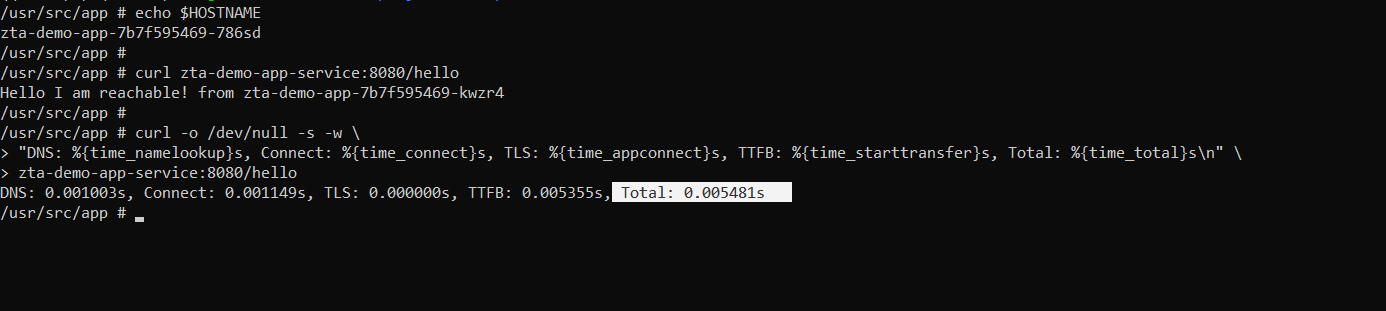

⏱ Before ZTA¶

curl -o /dev/null -s -w "Total: %{time_total}s\n" zta-demo-app-service:8080/hello

Output:

Total: 0.005481s

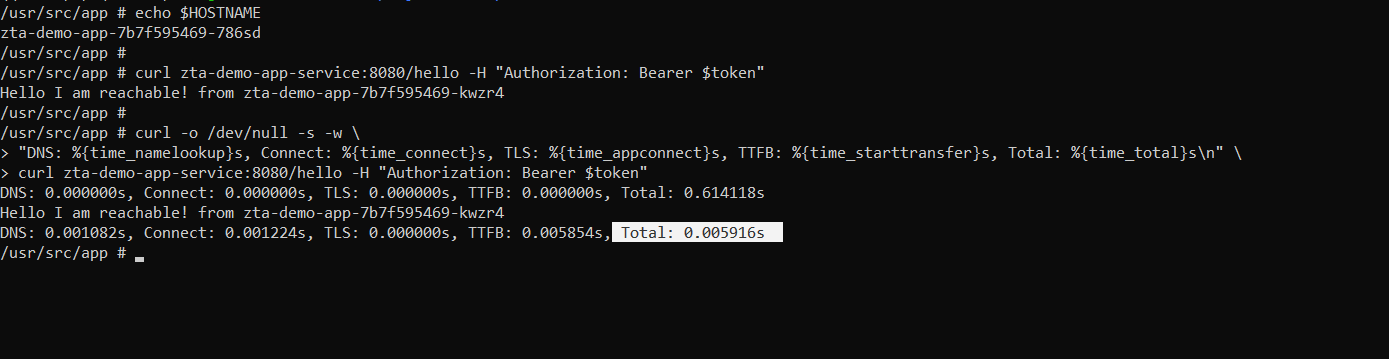

⏱ After ZTA (Token Authenticated)¶

curl -o /dev/null -s -w "Total: %{time_total}s\n" zta-demo-app-service:8080/hello -H "Authorization: Bearer $token"

Output:

Total: 0.005916s

🧠 Performance Perspective¶

The added latency of ~435 microseconds (µs) is negligible:

🔐 In return for this near-zero impact, we gain end-to-end service authentication, traffic encryption, and granular access control.
