Terraform Essentials for DevOps¶

Core Blocks¶

These are the most important Terraform configuration blocks for DevOps tasks:

• provider

Defines the infrastructure platform (e.g., AWS, Azure, GCP).

• resource

Provisions infrastructure components like servers, databases, and networks.

• variable

Declares input values to parameterise configurations.

• output

Exposes values (like IP addresses, URLs) after deployment.

• module

Organises and reuses Terraform configurations for better structure and DRY code.

• locals

Defines local values to simplify expressions and avoid repetition.

Sometimes Used¶

• data

Retrieves existing resources from the provider (e.g., latest AMI, existing VPC).

• terraform

Configures backend settings (e.g., for remote state storage with S3, GCS).

Resource vs Module¶

When to use which:

• If you want fine-grained control or need something not covered by a module → use provider resources directly from the AWS provider docs.

• If you want faster, standardised setups (VPC, RDS, ECS, S3) → use the terraform-aws-modules modules, pinned to a version.

Data Types¶

Terraform supports several variable types. Below is a complete list with examples.

Primitive Types¶

• string Text values.

variable "instance_type" {
  type    = string
  default = "t2.micro"
}

• number Integers or floats.

variable "instance_count" {
  type    = number
  default = 3
}

• bool Boolean values (true or false).

variable "enable_monitoring" {
  type    = bool
  default = true
}

Collection Types¶

• list() Ordered sequence of values of the same type.

variable "availability_zones" {
  type    = list(string)
  default = ["us-east-1a", "us-east-1b"]
}

• set() Unordered collection of unique values of the same type.

variable "security_groups" {
  type    = set(string)
  default = ["sg-12345", "sg-67890"]
}

• map() Key-value pairs with keys as strings and values of the same type.

variable "tags" {
  type = map(string)
  default = {
    Environment = "dev"
    Owner       = "team-a"
  }
}

Structural Types¶

• object({...}) Group of named attributes, each with its own type.

variable "server_config" {
  type = object({
    name     = string
    cpu      = number
    memory   = number
    priority = bool
  })
  default = {
    name     = "webserver"
    cpu      = 2
    memory   = 4096
    priority = true
  }
}

• tuple([...]) Sequence of elements where each position can have a different type.

variable "db_info" {
  type = tuple([string, number, bool])
  default = ["mysql", 3306, true]
}

Special Types¶

• any Accepts any type. Not recommended for strict validation.

variable "raw_input" {
  type = any
}

Terraform variable names must use letters, digits, and underscores only.

• Valid:

variable "instance_type" {}
variable "db_user1" {}
variable "enable_logging" {}

• Invalid (will cause an error):

variable "instance-type" {}   # hyphens not allowed
variable "db-user" {}

Hyphens (-) are only allowed in the values or resource names, not in variable identifiers.

Terraform Cheat Sheet¶

Provider¶

Defines the cloud or infrastructure platform.

provider "aws" {
    region = var.aws_region
}

Resource¶

Creates and manages infrastructure components.

resource "aws_instance" "web" {
    ami           = var.ami_id
    instance_type = var.instance_type
    tags = {
    Name = "web-server"
    }
}

Variable¶

Allows configuration reuse and customization.

variable "instance_type" {
    type    = string
    default = "t2.micro"
}

Usage:

instance_type = var.instance_type

Output¶

Exposes values after deployment.

output "web_ip" {
    value = aws_instance.web.public_ip
}

Module¶

Organises and reuses configuration.

module "vpc" {
    source = "./modules/vpc"
    cidr   = var.vpc_cidr
}

Locals¶

Simplifies logic and avoids repetition.

locals {
    subnet_cidrs = [
    cidrsubnet(var.vpc_cidr, 8, 1),
    cidrsubnet(var.vpc_cidr, 8, 2),
    ]
}

Data Source¶

Pulls in external or existing infrastructure.

data "aws_ami" "ubuntu" {
    most_recent = true
    owners      = ["099720109477"]
    filter {
    name   = "name"
    values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
    }
}

Terraform Block¶

Configures version and remote state settings.

terraform {
    required_version = ">= 1.0.0"
    backend "s3" {
    bucket         = "tf-state-bucket"
    key            = "prod/terraform.tfstate"
    region         = "eu-west-1"
    dynamodb_table = "tf-lock"
    }
}

Quick Glossary¶

DevOps Pro Tips¶

• Use remote state with locking in team settings (terraform block).
• Break infrastructure into modules for reuse and clarity.
• Always pin versions of Terraform and providers.
• Use data to avoid bloating state with existing infra.
• Apply consistent naming for better collaboration.

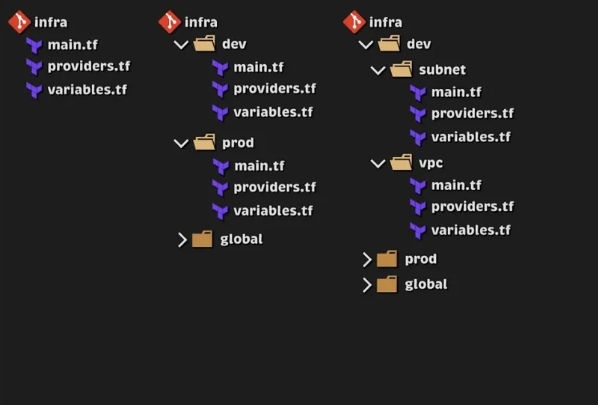

Version 3 - Each TF module in its own git repo with versioning (typical repo name: terraform-{provider}-{module} (e.g terraform-aws-vpc).

Then inside you would have the normal TF files → main, variables, outputs, versions, etc.

Then, after git commit, you git tag x.x.x, then push with -- tags. Now, in the main of each module, reference the git link with the tag as a source in the module resource

When changes are made to the module, push with a new version number. This can get cumbersome if there are too many repo modules so it's best to use reuseable modules across the microservices.

My current Stack¶

Local Development¶

Production¶

Terraform Command Cheat Sheet¶

Initialisation and Setup¶

terraform init            # Initialise working directory, install providers, configure backend
terraform init -upgrade   # Upgrade provider plugins
terraform workspace list  # List workspaces
terraform workspace new <name>  # Create new workspace
terraform workspace select <name>  # Switch workspace

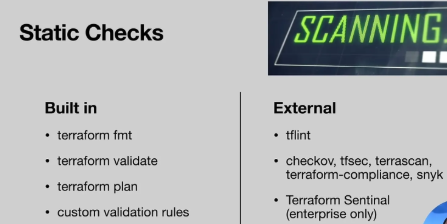

Validation and Formatting¶

terraform fmt             # Auto-format .tf files
terraform validate        # Validate syntax and internal consistency
terraform providers       # List providers required by configuration

Planning¶

terraform plan                          # Show execution plan
terraform plan -out=tfplan              # Save plan to file
terraform show tfplan                   # Show saved plan in human-readable form
terraform show -json tfplan > plan.json # Output plan in JSON

Applying¶

terraform apply                         # Apply with interactive approval
terraform apply -auto-approve           # Apply without prompt
terraform apply tfplan                  # Apply previously saved plan

Destroying¶

terraform destroy                       # Destroy managed infrastructure
terraform destroy -target=aws_instance.my_vm  # Destroy specific resource

State Management¶

terraform state list                    # List resources in state
terraform state show <resource>         # Show details of one resource
terraform state rm <resource>           # Remove resource from state
terraform state mv <src> <dst>          # Move resource in state
terraform refresh                       # Sync state with real infrastructure

Importing¶

terraform import <resource> <id>        # Import existing infra into state

Output¶

terraform output                        # Show all outputs
terraform output <name>                 # Show specific output
terraform output -json                  # JSON output

Graphing¶

terraform graph | dot -Tpng > graph.png # Generate dependency graph

Modules¶

Terraform always has at least two levels:

• Root module → the directory where you run terraform init/plan/apply.
• Child modules → any module blocks referenced from the root (or other child) modules.

1. Why use modules?¶

• Reuse across projects and environments.
• Standardise infrastructure (network, IAM, compute).
• Reduce duplication by passing variables.
• Enforce best practices by versioning modules in a registry.

2. Structure of a basic module¶

Example: modules/network/

modules/
└── network/
    ├── main.tf
    ├── variables.tf
    ├── outputs.tf

• main.tf → resources
• variables.tf → input variables
• outputs.tf → exported values

3. Calling a module¶

From your root module:

module "vpc" {
  source = "./modules/network"  # local path, Git URL, or registry
  cidr_block = "10.0.0.0/16"
  name       = "dev-vpc"
}

4. Sources¶

Modules can be sourced from:

• Local path

source = "./modules/network"

source  = "terraform-aws-modules/vpc/aws"
version = "5.0.0"

source = "git::https://github.com/your-org/tf-modules.git//network?ref=v1.0.0"

5. Variables and outputs¶

Inside module (variables.tf):¶

variable "cidr_block" {
  type        = string
  description = "VPC CIDR block"
}

variable "name" {
  type        = string
  description = "Name for the VPC"
}

Inside module (outputs.tf):¶

output "vpc_id" {
  value = aws_vpc.main.id
}

In root module:¶

module "vpc" {
  source     = "./modules/network"
  cidr_block = "10.0.0.0/16"
  name       = "dev-vpc"
}

output "vpc_id" {
  value = module.vpc.vpc_id
}

6. Meta-arguments with modules¶

Modules accept:

• count
• for_each
• depends_on
• providers

Example:

module "vpcs" {
  source = "./modules/network"
  for_each = {
    dev  = "10.0.0.0/16"
    prod = "10.1.0.0/16"
  }
  cidr_block = each.value
  name       = each.key
}

7. Best practices¶

• Keep modules small and focused (e.g. network, iam, compute).
• Use versioned modules from a Git repo or Terraform Registry.
• Do not put provider blocks inside child modules (pass providers from root).
• Expose only useful outputs.
• Keep modules stateless: no hardcoded values.
• Test modules in isolation before reusing.

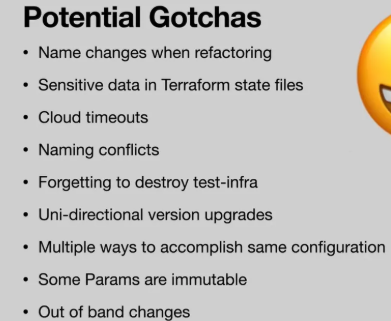

8. Risks¶

• Over-abstraction: too many generic variables makes modules hard to use.
• Provider inside module causes provider conflicts.
• Sensitive values passed through outputs are exposed in state.
• If using count/for_each, resource addressing can break on refactor.

There are Terraform modules that can spin up entire cloud setups, not just single resources.

1. Community / Official Modules¶

• Terraform AWS Modules (terraform-aws-modules): These are well-maintained, production-grade modules for AWS. Examples:

• terraform-aws-modules/vpc/aws → full VPC setup (subnets, routing, NAT, IGW).

• terraform-aws-modules/eks/aws → fully working EKS (Kubernetes) cluster with node groups, IAM roles, and networking.
• terraform-aws-modules/ec2-instance/aws → full EC2 provisioning with security groups, IAM, etc.

These modules can be combined to form a complete infrastructure (network + compute + IAM).

2. Stacks and Blueprints¶

Vendors and open-source projects publish stacks (collections of modules) that bring up entire environments.

• Gruntwork IaC Library (commercial) → prebuilt modules covering VPC, ECS, EKS, CI/CD, Vault, Consul.
• Cloud Posse modules (cloudposse) → composable modules that can build entire AWS org structures.
• HashiCorp AWS Reference Architecture (terraform-aws-landing-zone) → starting point for a full AWS account structure.

3. Cloud-Native Reference Projects¶

• AWS Control Tower + Terraform → sets up a multi-account AWS org with logging, guardrails, SSO.
• Google Cloud Foundation Toolkit (CFT) → Terraform modules for complete GCP environments.
• Azure Landing Zones (Enterprise Scale) → modules for identity, networking, governance.

4. DIY Patterns¶

You can also wire modules together for a full cloud setup:

• Root module defines environments (dev, staging, prod).

• Includes child modules:

• network (VPC, subnets, routes)

• security (IAM roles, policies, KMS)
• compute (EKS, ECS, or EC2)
• storage (S3, RDS, DynamoDB)
• One terraform apply spins up a ready-to-use environment.

Trade-offs¶

• Pros: Fast bootstrap, proven patterns, less boilerplate.
• Cons: Opinionated (you inherit module defaults), dependency management between large modules can be messy, risk of “black box” complexity.

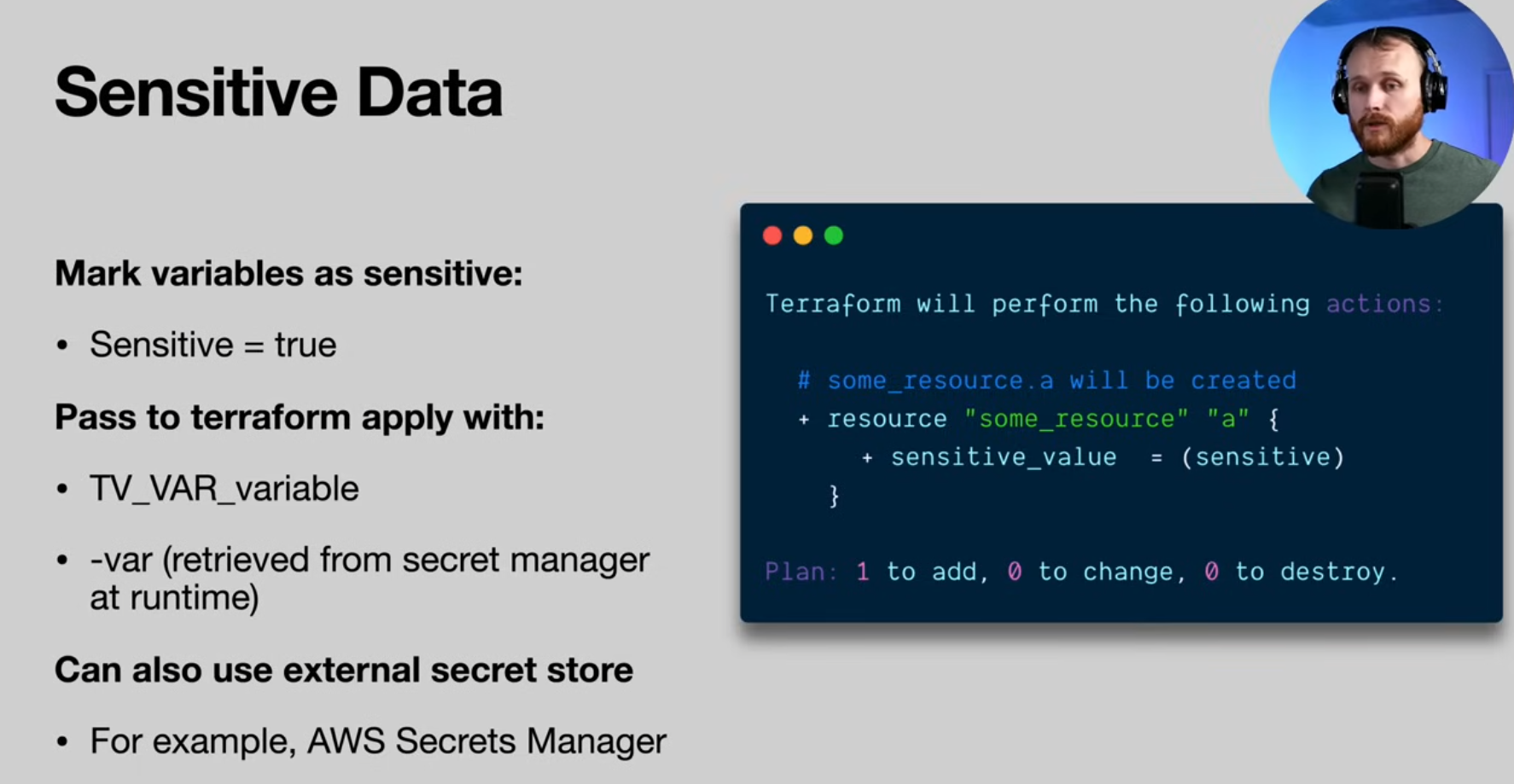

Passing sensitive values¶

In Terraform, sensitive variables are values that should not be displayed in plaintext in logs, CLI output, or state files where possible. They are used for things like passwords, API keys, secrets, etc.

How to declare a sensitive variable¶

variable "db_password" {
  description = "Database password"
  type        = string
  sensitive   = true
}

When sensitive = true:

• Terraform CLI masks the value with "sensitive" in outputs.
• terraform plan and terraform apply will not print the value.
• However, the raw value still exists in the Terraform state file (terraform.tfstate).

Using sensitive variables in modules¶

module "db" {
  source      = "./modules/db"
  db_password = var.db_password
}

Sensitive outputs¶

output "db_password" {
  value     = var.db_password
  sensitive = true
}

This prevents the output from being shown in the CLI unless you explicitly request it:

terraform output db_password        # masked
terraform output -json db_password  # reveals raw value

Sources for sensitive values¶

• Environment variables

export TF_VAR_db_password="supersecret"
terraform apply

• .tfvars file (never commit this):

db_password = "supersecret"

• Terraform Cloud / Workspaces → set as workspace variables, marked sensitive.
• Secret managers (recommended): inject from AWS Secrets Manager, Vault, or SSM via data sources.

Limitations¶

• Sensitive values still exist in terraform.tfstate. Anyone with access to state storage can read them.
• To mitigate, always use a remote backend (e.g. S3 + DynamoDB, Terraform Cloud, Vault).
• Sensitive only prevents accidental exposure in CLI/logs, not storage.

Best practices¶

1. Mark all secrets (passwords, API keys, tokens) as sensitive = true.
2. Never commit .tfvars with secrets to git.
3. Store secrets in secret managers or inject via pipelines.
4. Protect state files: encrypt in S3, restrict access, or use Terraform Cloud.
5. Use prevent_destroy lifecycle for critical resources that depend on secrets.

Meta Arguments¶

In Terraform, meta-arguments are special arguments you can add to any resource or module block. They control Terraform’s behaviour, not the resource itself. They are evaluated by Terraform Core before provider logic.

Common Meta-Arguments¶

1. count¶

Create multiple instances of a resource.

resource "aws_instance" "example" {
  count = 3
  ami   = "ami-123456"
  type  = "t2.micro"
}

Accessible via index:

aws_instance.example[0].id

2. for_each¶

Iterate over a map or set of strings. More flexible than count.

resource "aws_s3_bucket" "b" {
  for_each = toset(["logs", "images", "data"])
  bucket   = "myapp-${each.key}"
}

Access: aws_s3_bucket.b["logs"].id

3. provider¶

Choose a specific provider configuration (useful for multi-region/multi-account).

provider "aws" {
  alias  = "us_west"
  region = "us-west-2"
}

resource "aws_instance" "west" {
  provider = aws.us_west
  ami      = "ami-789012"
  type     = "t2.micro"
}

4. depends_on¶

Force explicit dependency when Terraform cannot infer it automatically.

resource "aws_instance" "app" {
  ami           = "ami-123456"
  type          = "t2.micro"
  depends_on    = [aws_s3_bucket.logs]
}

5. lifecycle¶

Fine-tune create/update/destroy behaviour.

resource "aws_s3_bucket" "state" {
  bucket = "terraform-state"

  lifecycle {
    prevent_destroy = true       # disallow destroy
    create_before_destroy = true # replacement strategy
    ignore_changes = [tags]      # ignore drift on tags
  }
}

6. provisioner (not recommended for production)¶

Run local or remote scripts after create/destroy.

resource "aws_instance" "app" {
  provisioner "local-exec" {
    command = "echo ${self.public_ip} >> hosts"
  }
}

Better to use config management tools (Ansible, cloud-init).

7. connection (used with provisioners)¶

Define how to connect to the resource.

connection {
  type     = "ssh"
  user     = "ec2-user"
  host     = self.public_ip
  private_key = file("~/.ssh/id_rsa")
}

At Module Level¶

Modules also support meta-arguments:

• count
• for_each
• depends_on
• providers

Example:

module "network" {
  source = "./modules/network"
  for_each = {
    dev  = "10.0.0.0/16"
    prod = "10.1.0.0/16"
  }
  cidr_block = each.value
}

Best Practices¶

• Prefer for_each over count for clarity (works with maps and stable addressing).
• Use depends_on sparingly—most dependencies are inferred automatically.
• Always use lifecycle.prevent_destroy = true for critical resources like state buckets.
• Avoid provisioners unless no other option exists.

Testing¶

Terraform supports automated testing, but not traditional "unit tests" like in application code. Testing Terraform usually means validating configuration, planning, and applying against real or mocked infrastructure.

1. Built-in validation¶

• terraform validate → checks syntax and internal references.
• terraform plan → dry-run to see what changes will be applied.
• These catch obvious issues, but not logic errors or infrastructure behaviour.

2. Unit-style testing with mocks¶

• Terraform plan + JSON output can be parsed and validated.

terraform plan -out=tfplan
terraform show -json tfplan > plan.json

You can then assert expected resources with tools like jq or custom scripts.

• Terratest (Go library) → industry standard for Terraform testing.

• Uses Go’s testing framework.

• Can spin up infrastructure, run assertions (e.g. check an EC2 instance is reachable), and then destroy it.

• Example:

  func TestTerraformAwsExample(t *testing.T) {
    terraformOptions := &terraform.Options{
      TerraformDir: "../examples/aws",
    }
    defer terraform.Destroy(t, terraformOptions)
    terraform.InitAndApply(t, terraformOptions)
    vpcId := terraform.Output(t, terraformOptions, "vpc_id")
    assert.NotEmpty(t, vpcId)
  }


3. Policy and compliance tests¶

• Terraform Cloud / Sentinel → policy as code (enforce rules before apply).
• Open Policy Agent (OPA) / Conftest → test .tf or .json plans against compliance rules. Example: ensure all S3 buckets have encryption enabled.

4. Integration / End-to-End testing¶

• Run Terraform in CI/CD (GitHub Actions, GitLab, Jenkins).

• Pipeline stages:

• terraform fmt -check

• terraform validate
• terraform plan -detailed-exitcode (fail if unexpected changes)
• Optional: apply in a sandbox account → run integration tests (ping services, check IAM roles, etc.) → destroy.

5. Specialised tools¶

• Checkov (by Bridgecrew) → static analysis for Terraform (security/compliance).
• TFLint → linter for Terraform, validates provider-specific rules.
• InSpec + Kitchen-Terraform → integration testing for infra after deployment.

Best Practice Testing Strategy¶

• Pre-commit → terraform fmt, terraform validate, tflint, checkov.
• CI/CD (unit-ish) → run terraform plan, parse JSON, assert expected resources.
• Integration (sandbox env) → deploy infra, test with Terratest/pytest, destroy.
• Compliance → enforce policies via Sentinel or OPA.

Using Atlantis¶

Atlantis is a self-hosted Terraform automation tool for pull-request workflows. It listens to Git webhooks, runs Terraform commands, and posts results back to PRs.

• Source: https://www.runatlantis.io
• Works with GitHub, GitLab, Bitbucket, Azure Repos.

Core Workflow¶

1. Developer opens PR with Terraform changes.
2. Atlantis auto-runs terraform plan.
3. Atlantis posts the plan as a PR comment.
4. Reviewer approves.
5. Someone comments atlantis apply.
6. Atlantis runs terraform apply from its server.
7. PR merges after infra changes succeed.

Supported Commands (commented in PR)¶

• atlantis plan

• Runs terraform plan in the repo/directory/workspace.

• atlantis apply

• Runs terraform apply.

• atlantis plan -d dir -w workspace

• Run plan in specific directory/workspace.

• atlantis apply -d dir -w workspace

• Apply only for a subset.

• atlantis unlock

• Unlock a stuck plan.

Setup Requirements¶

• Atlantis server (binary, Docker, Helm chart).
• Git provider integration: webhook + bot user/token.
• Access to Terraform backend (S3/DynamoDB, GCS, etc).
• IAM/credentials mounted into Atlantis container/VM.

Global Config (repos.yaml)¶

Controls allowed repos and workflows. Example:

repos:
- id: github.com/myorg/*
  apply_requirements: [approved, mergeable]
  workflow: default
  allowed_overrides: [workflow]
  allow_custom_workflows: true

Repo Config (atlantis.yaml)¶

Defines projects and workflows for a repo. Example:

version: 3
projects:
- name: staging
  dir: terraform/staging
  workspace: staging
- name: prod
  dir: terraform/prod
  workspace: prod

workflows:
  custom:
    plan:
      steps:
        - init
        - plan:
            extra_args: ["-lock=false"]
    apply:
      steps:
        - apply

Key Features¶

• ChatOps style (trigger via PR comments).
• Multi-project support (atlantis.yaml can define many dirs/workspaces).
• Approval gates (require PR approval before apply).
• Policy controls (apply_requirements: approved, mergeable, etc).
• Custom workflows (inject tflint, checkov, pre-commit).
• Locking (prevents concurrent applies).
• Audit trail (all plans/applies tied to PRs and users).

Best Practices¶

• Run Atlantis in a dedicated environment (Kubernetes, EC2, GCP VM).
• Use Terraform remote state (S3+DynamoDB, GCS, Terraform Cloud).
• Store credentials securely (vault, IRSA, workload identity).
• Define projects in atlantis.yaml to prevent running in the whole repo accidentally.
• Use custom workflows for linting, policy checks, security scans.
• Require PR approvals before atlantis apply.

Pros / Cons¶

Pros:

• Open-source, self-hosted, free.
• Strong GitOps workflow.
• Easy collaboration (all plans visible in PRs).
• Extensible via workflows.

Cons:

• Self-hosted → you manage upgrades, security, HA.
• Single-server bottleneck unless scaled.
• Limited UI (PR comments only).
• Doesn’t manage secrets → you handle via env/volumes.

Alternatives¶

• Terraform Cloud / Enterprise → SaaS, policy engine, built-in secrets.
• Spacelift → commercial, strong GitOps + policies.
• Env0, Scalr → similar to Atlantis but SaaS-based.
• DIY pipelines → GitHub Actions, GitLab CI running Terraform manually.

Useful Commands Cheat¶

Inside PR:

atlantis plan                  # plan default project
atlantis apply                 # apply default project
atlantis plan -d terraform/dev # plan only in terraform/dev
atlantis apply -w prod         # apply only in prod workspace
atlantis unlock                # unlock stuck project

Debugging¶

• Logs live in Atlantis server container/VM.
• Failed applies often caused by missing credentials or state lock.
• Use --log-level debug when running Atlantis for troubleshooting.

Terraform with Kubernetes and HELM¶

Local setup¶

Example: Terraform + kind¶

Providers needed:

• kind provider
• kubernetes provider (to interact with the cluster)
• helm provider (to manage Helm charts)
• kubectl provider (only if raw YAML manifests are required)

terraform {
  required_providers {
    kind = {
      source  = "tehcyx/kind"
      version = "0.20.0"
    }
    kubernetes = {
      source  = "hashicorp/kubernetes"
      version = "2.22.0"
    }
    helm = {
      source  = "hashicorp/helm"
      version = "2.12.1"
    }
    kubectl = {
      source  = "gavinbunney/kubectl"
      version = ">= 1.7.0"
    }
  }
}

provider "kind" {}

provider "kubernetes" {
  config_path = kind_cluster.local.kubeconfig_path
}

provider "helm" {
  kubernetes {
    config_path = kind_cluster.local.kubeconfig_path
  }
}

resource "kind_cluster" "local" {
  name           = "local-cluster"
  wait_for_ready = true
}

resource "helm_release" "argocd" {
  name             = "argocd"
  repository       = "https://argoproj.github.io/argo-helm"
  chart            = "argo-cd"
  version          = "5.46.8"
  namespace        = "argocd"
  create_namespace = true
  timeout          = 600
  replace          = true
  values           = [file("values/argocd-values.yaml")]
}

Notes:

• kind_cluster.local.kubeconfig_path exposes kubeconfig.
• helm_release installs the Nginx chart.
• Local clusters are ephemeral and not production-grade.
• kubectl provider is optional; use only if applying raw YAML manifests.

In the Cloud¶

AWS EKS (Elastic Kubernetes Service):

• Managed control plane.
• Worker nodes via EC2 or Fargate.
• Complex IAM and networking.

GCP GKE (Google Kubernetes Engine):

• Fully managed.
• Strong integration with GCP networking and IAM.

Azure AKS (Azure Kubernetes Service)

• Similar to GKE.
• Integrates with AAD.

AWS EKS Example with Terraform¶

Providers needed:

• aws
• kubernetes
• helm
• kubectl

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "5.29.0"
    }
    kubernetes = {
      source  = "hashicorp/kubernetes"
      version = "2.22.0"
    }
    helm = {
      source  = "hashicorp/helm"
      version = "2.12.1"
    }
    kubectl = {
      source  = "gavinbunney/kubectl"
      version = ">= 1.7.0"
    }
  }
}

data "aws_eks_cluster" "cluster" {
  name = module.eks.cluster_name
  depends_on = [module.eks]
}

data "aws_eks_cluster_auth" "cluster" {
  name = module.eks.cluster_name
  depends_on = [module.eks]
}

provider "aws" {
  region = "us-east-1"
}

provider "kubernetes" {
  host                   = module.eks.cluster_endpoint
  cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
  token                  = data.aws_eks_cluster_auth.cluster.token
}

provider "helm" {
  kubernetes {
    host                   = module.eks.cluster_endpoint
    cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
    token                  = data.aws_eks_cluster_auth.cluster.token
  }
}

provider "kubectl" {
  host                   = module.eks.cluster_endpoint
  cluster_ca_certificate = base64decode(module.eks.cluster_certificate_authority_data)
  token                  = data.aws_eks_cluster_auth.cluster.token
  load_config_file       = false
}

module "eks" {
  source          = "terraform-aws-modules/eks/aws"
  cluster_name    = "prod-cluster"
  cluster_version = "1.29"
  subnets         = ["subnet-xxxx", "subnet-yyyy"]
  vpc_id          = "vpc-xxxx"

  node_groups = {
    default = {
      desired_capacity = 2
      max_capacity     = 4
      min_capacity     = 1
      instance_types   = ["t3.medium"]
    }
  }
}

resource "helm_release" "nginx" {
  name       = "nginx"
  repository = "https://charts.bitnami.com/bitnami"
  chart      = "nginx"
}

Notes:

• depends_on ensures cluster is created before authentication data is fetched.
• Real EKS deployments require VPC, IAM roles, OIDC provider, and networking to be fully configured.
• Security groups and IAM for service accounts (IRSA) must be designed carefully.

Terraform + Helm Workflow¶

• Write Terraform configuration.
• Run terraform init.
• Run terraform plan to preview.
• Run terraform apply to provision cluster.
• Terraform provisions cluster and installs Helm charts.
• Manage upgrades with terraform apply.

Advantages¶

• Single Infrastructure as Code workflow for infrastructure and applications.
• Reproducibility: cluster and workloads are codified.
• Automates bootstrap (ingress, monitoring, CNI, logging).
• Works for both local and cloud environments.

Disadvantages / Risks¶

• State management risk: state file must be secured and stored remotely.
• Complexity in cloud: networking, IAM, VPCs, and OIDC integrations.
• Drift: manual changes in the cluster are not tracked by Terraform.
• Provider lag: Helm and Kubernetes providers may not match upstream API changes.
• State bloat: Helm releases increase state file size.
• Lifecycle coupling: destroying a cluster also destroys workloads.

Best Practices¶

• Store state in a secure remote backend with locking (S3 + DynamoDB, GCS, Azure Blob).
• Encrypt state with KMS or equivalent.
• Use official Terraform modules (EKS, GKE, AKS) for reliability.

• Separate infrastructure and workloads:

• One workspace for cluster infrastructure.

• One workspace for Helm charts.
• Use provider version pinning.
• Use lifecycle { ignore_changes = [...] } for Helm values likely to drift.
• Apply GitOps for Helm releases beyond initial bootstrap (e.g. ArgoCD, Flux).
• Use least privilege IAM for Terraform execution role.
• Use separate state backends or workspaces per environment (dev, staging, prod).
