Setup¶

The effective folder structure:

.
├── terraform/
│   └── envs/                     # Environment-specific configurations
│       ├── dev/
│       │   ├── main.tf           # Calls upstream modules (VPC, RDS, ECS, etc.)
│       │   ├── backend.tf        # Remote backend config (state isolation)
│       │   ├── variables.tf      # Variable definitions for this env
│       │   ├── providers.tf      # Provider config (AWS,GCP,AZURE) per env
│       │   └── dev.tfvars        # Only immutable, non-sensitive defaults
│       ├── staging/              # Mirrors dev; used for integration tests
│       └── prod/                 # Mirrors staging; stricter quotas and policies
│
├── versions.tf               # Locks Terraform & provider versions
├── .tflint.hcl               # Linting rules
├── .checkov.yml              # Static security analysis rules
├── .infracost.yml            # Cost estimation config
├── .pre-commit-config.yaml   # Developer hygiene hooks
├── .trivyignore              # Ignore rules for container scans
└── README.md                 # Explains repo usage and structure

2. Modules in practice¶

2.1 Direct call pattern (envs/prod/main.tf abridged)¶

# VPC
module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"  # Official module
  version = "~> 6.0"                          # Pin MAJOR, allow patch/minor upgrades
  name    = "${var.service}-vpc"
  cidr    = var.cidr_block

  # Take first 3 AZs to spread resources
  azs     = slice(data.aws_availability_zones.available.names, 0, 3)

  public_subnets  = var.public_subnets
  private_subnets = var.private_subnets

  enable_nat_gateway = true
  tags = local.tags
}

# RDS
module "db" {
  source  = "terraform-aws-modules/rds/aws"
  version = "~> 6.12"
  identifier = "${var.service}-db"

  engine         = "postgres"
  engine_version = "16.2"
  instance_class = "db.t4g.medium"
  subnet_ids     = module.vpc.private_subnets
  multi_az       = true                     # Highly available
  backup_retention_period = 7
  deletion_protection     = true            # Safety guard

  username = var.db_user
  password = data.aws_secretsmanager_secret_version.db_pwd.secret_string
  tags     = local.tags
}

# ECS
module "ecs" {
  source  = "terraform-aws-modules/ecs/aws"
  version = "~> 5.13"
  cluster_name   = "${var.service}-${var.environment}"
  capacity_providers = ["FARGATE", "FARGATE_SPOT"]

  services = {
    web = {
      cpu    = 512
      memory = 1024
      desired_count = 2

      # Container definition encoded as JSON
      container_definitions = jsonencode([{
        name  = "web"
        image = "${var.image}@${var.image_digest}"

        portMappings = [{ containerPort = 8080 }]

        secrets = [
          { name = "DB_URL", valueFrom = module.db.secret_arn }
        ]

        environment = [
          { name = "SPRING_PROFILES_ACTIVE", value = var.environment }
        ]
      }])

      load_balancer = {
        target_group_arn = module.ecs.alb_target_group_arns["web"]
      }
    }
  }
  tags = local.tags
}

Rationale:

• Call upstream modules directly and pin versions.
• Inject secrets via ARN, never plaintext
• Use locals for tagging consistency.

Rule of thumb: wrap if you need mandatory tags or guard-rails; never fork – you’ll lose the upstream upgrades.

3. Remote backend recipes¶

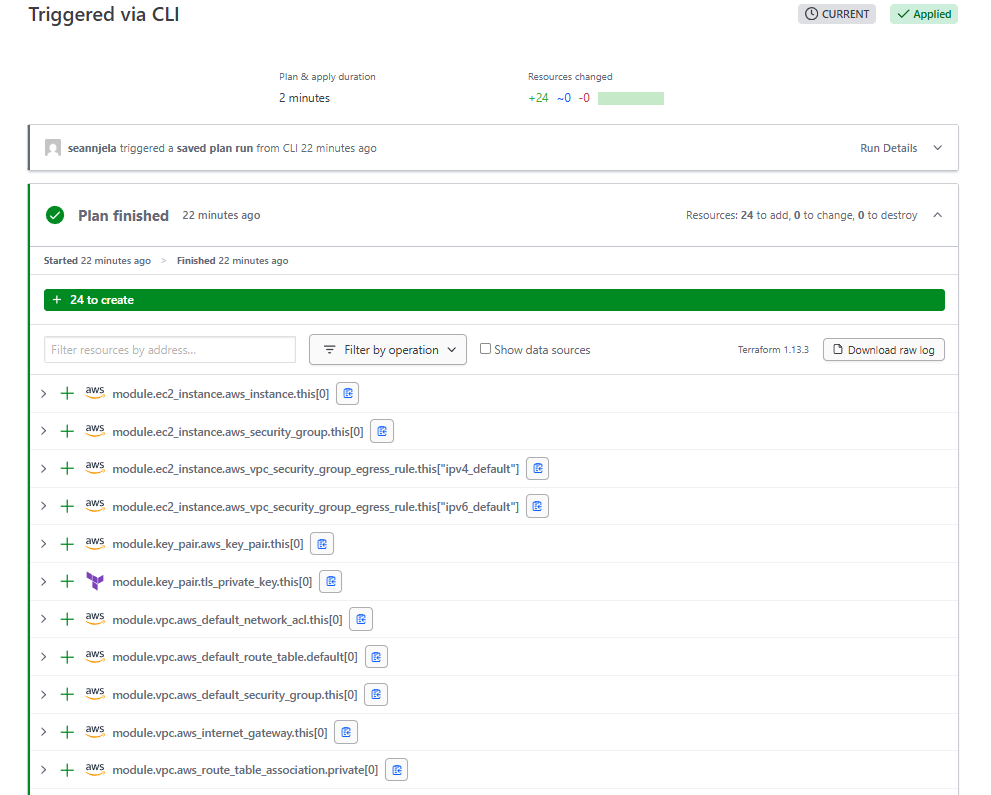

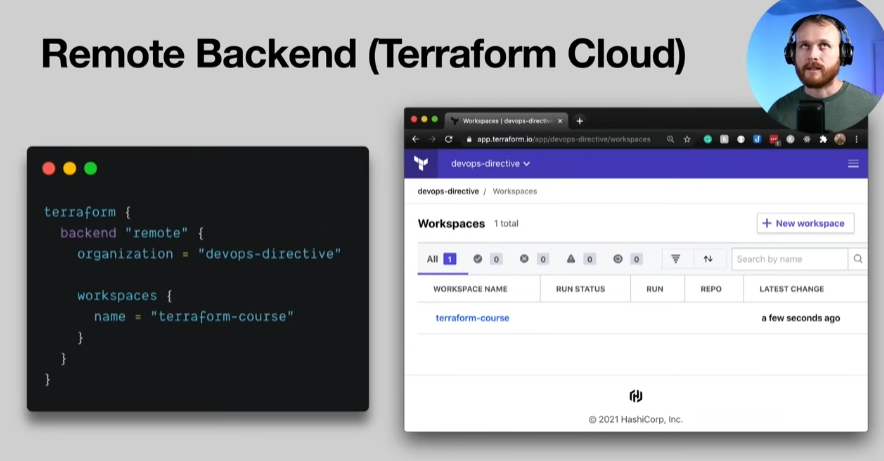

Terraform Cloud (simplest)¶

terraform {
  backend "remote" {
    organization = "acme-solo"
    workspaces { name = "webapp-prod" }
  }
}

Pros: simplest setup, state encryption managed. Cons: paid tier may be needed for policies.

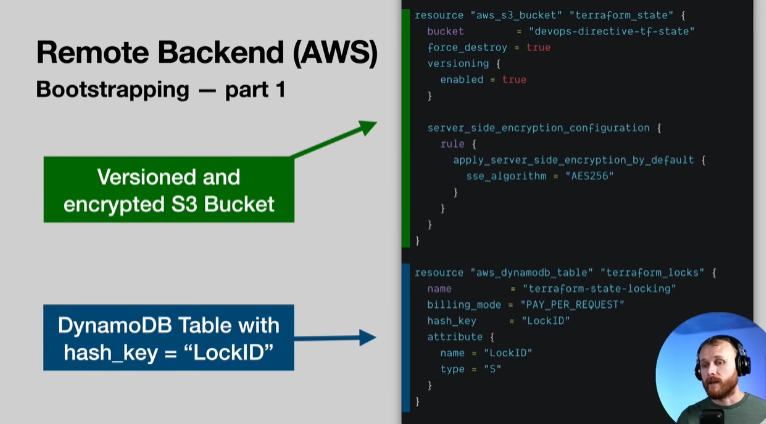

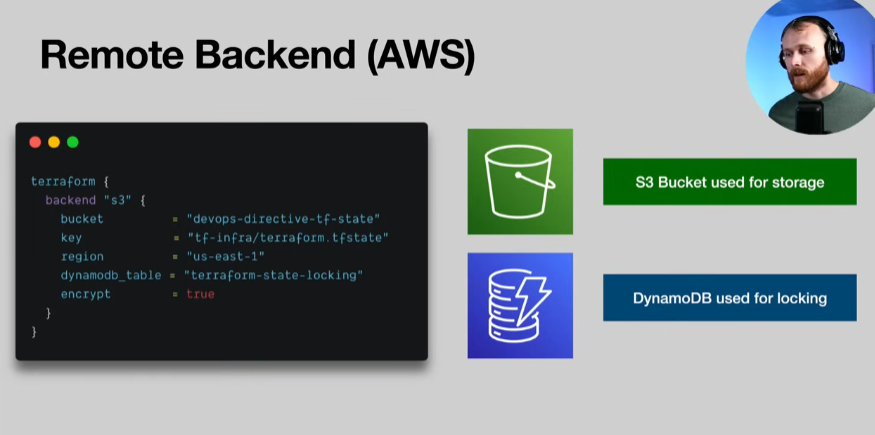

S3 + DynamoDB (fully OSS)¶

terraform {
  backend "s3" {
    bucket         = "acme-terraform-state" # must exist beforehand
    key            = "prod/terraform.tfstate"
    region         = "eu-central-1"
    dynamodb_table = "terraform-locks"      # provides locking
    encrypt        = true                   # SSE-KMS recommended
  }
}

4. versions.tf¶

terraform {
  required_version = "~> 1.9"         # June 2025 LTS
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 6.0"
    }
  }
}

Commit the generated terraform.lock.hcl so CI is deterministic.

5. Security defaults¶

6. GitHub Actions pipeline (.github/workflows/terraform.yml)¶

name: Terraform

on:
  pull_request:
    paths: ["terraform/**"]

permissions: { id-token: write, contents: read }

jobs:
  validate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - run: terraform fmt -check -recursive
      - run: terraform init -backend-config="envs/${{ github.head_ref }}/backend.hcl"
      - run: terraform validate

  plan:
    needs: validate
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - run: terraform init -backend-config="envs/${{ github.head_ref }}/backend.hcl"
      - run: terraform plan -out=tfplan
      - uses: actions/upload-artifact@v4
        with: { name: tfplan, path: tfplan }

  apply:
    if: github.event.pull_request.merged == true
    environment: prod        # requires manual approval gate
    needs: plan
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: hashicorp/setup-terraform@v3
      - run: terraform init -backend-config="envs/prod/backend.hcl"
      - run: terraform apply -auto-approve tfplan

• OIDC → AWS role assumption. No long-lived keys.
• Manual approval enforced by GitHub environments.
• Plans are generated on PR, applied only after merge.

7. Local developer ergonomics¶

• make deploy ENV=dev – wraps terraform init/plan/apply.
• Direnv – autoloads environment variables (AWS_PROFILE, region).
• .pre-commit-config.yaml – keeps style & security on every commit:

repos:
  - repo: https://github.com/antonbabenko/pre-commit-terraform
    rev: v1.79.0
    hooks:
      - id: terraform_fmt
      - id: terraform_validate
      - id: tflint
      - id: tfsec
      - id: checkov

8. Cost & drift guard-rails¶

9. Scaling & failure-proofing checklist¶

[] Multi-AZ: ALBs, RDS, subnets across ≥ 2 AZs.

[] Auto-scaling: ECS services with Fargate Spot + CPU/latency metrics.

[] Backups: RDS retention 7 days, cross-region snapshot copy.

[] Observability: CloudWatch dashboards/alarms. Add Prometheus/Grafana if needed.

[] Deployments: ECS rolling updates. Optionally add CodeDeploy for blue-green.

10. Upgrade workflow¶

• Review release notes of each module.

• Bump version pin in branch.

• Run terraform init -upgrade in dev.

• Validate plan.

• Merge → pipeline applies to staging and prod with gate.

(You usually only do this quarterly; the community publishes clear guides.)

11. When this template stops being enough¶

TL;DR printable checklist¶

• One mono-repo with envs/ for each environment
• Remote state secured & versioned
• Use terraform-aws-modules/* directly, pinned to major versions
• OIDC → no static AWS keys
• Pre-commit: fmt, validate, tflint, tfsec, checkov
• GitHub Actions plan on PR, apply on merge with manual prod gate
• Encrypt & tag everything; secrets via Secrets Manager
• Nightly drift plan + Infracost + Budget alerts

Using the Template in dev/prod¶

Each environment is isolated in its own directory under envs/. You always cd into that environment’s directory before running Terraform. This ensures state, variables, and backends remain separate.

1. Backend configuration¶

envs/dev/backend.tf¶

terraform {
  backend "s3" {
    bucket         = "acme-terraform-state"
    key            = "dev/terraform.tfstate"  # path unique to dev
    region         = "eu-central-1"
    dynamodb_table = "terraform-locks"
    encrypt        = true
  }
}

envs/prod/backend.tf¶

terraform {
  backend "s3" {
    bucket         = "acme-terraform-state"
    key            = "prod/terraform.tfstate" # path unique to prod
    region         = "eu-central-1"
    dynamodb_table = "terraform-locks"
    encrypt        = true
  }
}

2. Main module calls¶

Both main.tf files are structurally the same. They call upstream modules but parameterise with environment-specific variables.

envs/dev/main.tf¶

module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "~> 6.0"

  name    = "dev-vpc"
  cidr    = var.cidr_block
  azs     = slice(data.aws_availability_zones.available.names, 0, 2)

  public_subnets  = var.public_subnets
  private_subnets = var.private_subnets

  enable_nat_gateway = false   # cheaper for dev
  tags = local.tags
}

envs/prod/main.tf¶

module "vpc" {
  source  = "terraform-aws-modules/vpc/aws"
  version = "~> 6.0"

  name    = "prod-vpc"
  cidr    = var.cidr_block
  azs     = slice(data.aws_availability_zones.available.names, 0, 3)

  public_subnets  = var.public_subnets
  private_subnets = var.private_subnets

  enable_nat_gateway = true    # HA and scaling for prod
  tags = local.tags
}

3. Variables¶

envs/dev/dev.tfvars¶

service        = "webapp"
environment    = "dev"
cidr_block     = "10.0.0.0/16"
public_subnets = ["10.0.1.0/24"]
private_subnets= ["10.0.101.0/24"]
db_user        = "devuser"

envs/prod/prod.tfvars¶

service        = "webapp"
environment    = "prod"
cidr_block     = "10.1.0.0/16"
public_subnets = ["10.1.1.0/24", "10.1.2.0/24", "10.1.3.0/24"]
private_subnets= ["10.1.101.0/24", "10.1.102.0/24", "10.1.103.0/24"]
db_user        = "produser"

Secrets (passwords, keys) must not be stored in *.tfvars. Use Secrets Manager or SSM.

4. Commands¶

For development¶

cd envs/dev
terraform init
terraform plan -var-file=dev.tfvars
terraform apply -var-file=dev.tfvars

For production¶

cd envs/prod
terraform init
terraform plan -var-file=prod.tfvars
terraform apply -var-file=prod.tfvars

Key notes¶

• Each backend.tf ensures state isolation per environment.
• Each *.tfvars file holds only immutable config (CIDRs, naming, sizes), never secrets.
• Resource behaviour differs per environment (e.g. NAT disabled in dev, enabled in prod).
• CI/CD can switch cd envs/<env> based on branch or workflow input.

Secrets¶

Secrets are never checked into the repo. Terraform only references them at runtime from a managed secret store. Provisioning works by:

1. Store the secret¶

Example: database password in AWS Secrets Manager¶

aws secretsmanager create-secret \
  --name db/webapp/prod/password \
  --secret-string 'SuperStrongPassword123!'

or for SSM Parameter Store (encrypted with KMS):

aws ssm put-parameter \
  --name /db/webapp/prod/password \
  --value 'SuperStrongPassword123!' \
  --type SecureString

2. Reference secret in Terraform¶

Using Secrets Manager¶

# Fetch the latest version of the secret
data "aws_secretsmanager_secret_version" "db_pwd" {
  secret_id = "db/webapp/${var.environment}/password"
}

module "db" {
  source  = "terraform-aws-modules/rds/aws"
  version = "~> 6.12"

  identifier             = "${var.service}-db"
  engine                 = "postgres"
  username               = var.db_user
  password               = data.aws_secretsmanager_secret_version.db_pwd.secret_string
  # other RDS inputs...
}

Using SSM Parameter Store¶

data "aws_ssm_parameter" "db_pwd" {
  name = "/db/webapp/${var.environment}/password"
  with_decryption = true
}

module "db" {
  source  = "terraform-aws-modules/rds/aws"
  version = "~> 6.12"

  identifier = "${var.service}-db"
  username   = var.db_user
  password   = data.aws_ssm_parameter.db_pwd.value
}

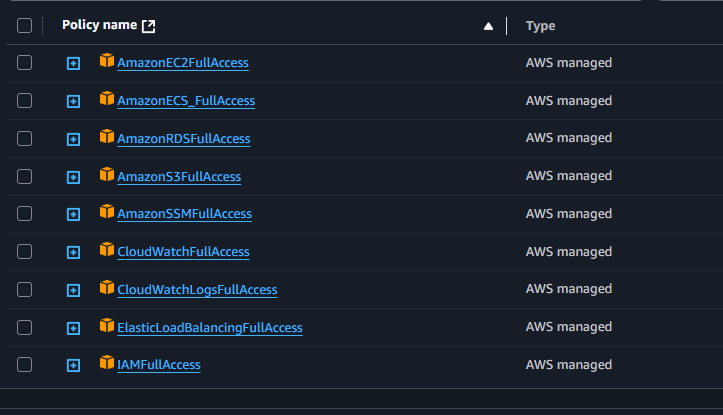

3. Access control¶

• Terraform execution role (from GitHub Actions OIDC or developer IAM role) must have read-only permission for that secret. Example IAM policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "secretsmanager:GetSecretValue",
        "ssm:GetParameter"
      ],
      "Resource": [
        "arn:aws:secretsmanager:eu-central-1:123456789012:secret:db/webapp/*",
        "arn:aws:ssm:eu-central-1:123456789012:parameter/db/webapp/*"
      ]
    }
  ]
}

4. Provisioning flow¶

• Secrets created once manually or by a bootstrap script.
• Terraform plan/apply runs. It pulls the secret value dynamically from AWS.
• RDS or ECS module consumes it as input.
• The secret never enters Git history, .tfvars, or CI logs.

5. Runtime injection into workloads¶

Example with ECS:

container_definitions = jsonencode([{
  name  = "web"
  image = var.image
  secrets = [
    { name = "DB_PASSWORD", valueFrom = data.aws_secretsmanager_secret.db_pwd.arn }
  ]
}])

ECS injects the secret into the container environment at runtime.

Recommended “cookie-cutter” starting point¶

Pick → terramate-io/terramate-quickstart-aws.

Among the public, maintained starters it is the only one that already folds in all the must-haves we listed earlier while still staying light enough for one engineer.

Setting Things up¶

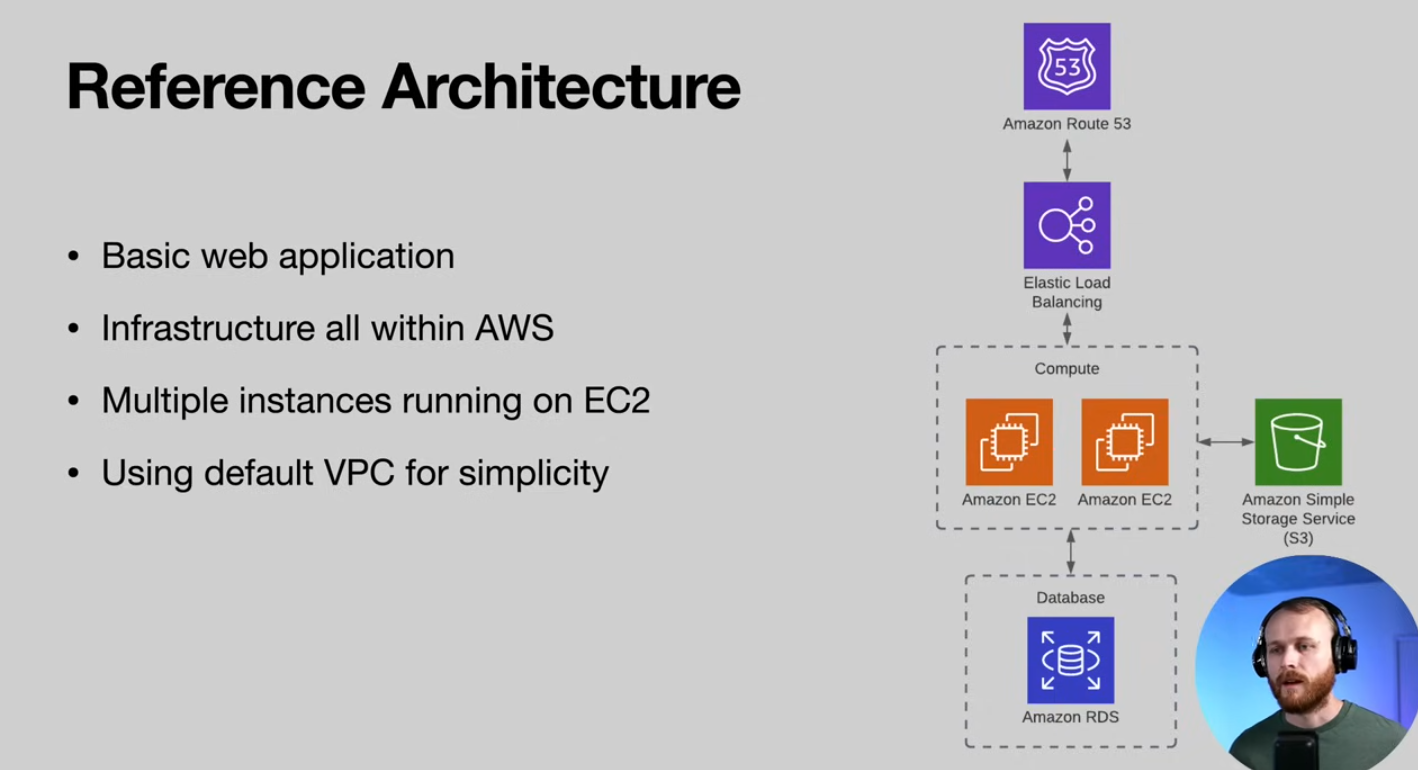

The following is the reference arhitecture that we will be deploying with Terraform:

We First create an IAM user and configure the aws cli:

aws configure

We are using terraform cloud backend.

We initialise the terraform backend by stating the terraform {} block in the backend.tf.

Then we terraform login and create a token to be used on the cli.

Since we are using Terraform Cloud:

We use Terraform Cloud → AWS OIDC dynamic credentials. Steps:

Create the OIDC identity provider in AWS¶

1. Open IAM → Identity providers → Add provider → OpenID Connect.
2. Set Provider URL to https://app.terraform.io without trailing slash.
3. Set Audience to aws.workload.identity.
4. Save and note the provider ARN.

Create the IAM role the workspace will assume¶

1. Create a new role → Web identity → Select the OIDC provider you created.
2. Workspace Run → this is the correct option for standard Terraform Cloud workspaces.3. Attach these permissions policy for the AWS resources Terraform must manage. (For prod attach stricter policies):

This restricts the token to the exact organisation, project, and workspaces(dev, bootstrap, staging, prod => this is very importatnt). Use run_phase => * if one role is shared by plan and apply. Create two roles if plan and apply need different permissions and set run_phase -> plan or run_phase => apply.

example trusted entities entry:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::xxxxx"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "app.terraform.io:aud": "aws.workload.identity"
        },
        "StringLike": {
          "app.terraform.io:sub": [
            "organization:devopssean:project:tf-demo:workspace:dev:run_phase:*",
            "organization:devopssean:project:tf-demo:workspace:bootstrap:run_phase:*",
            "organization:devopssean:project:tf-demo:workspace:prod:run_phase:*",
            "organization:devopssean:project:tf-demo:workspace:staging:run_phase:*"
          ]
        }
      }
    }
  ]
}

Add variables in the Terraform Cloud workspace¶

1. In Workspace → Variables, add environment variables:

2. TFC_AWS_PROVIDER_AUTH=true

3. TFC_AWS_RUN_ROLE_ARN=arn:aws:iam::...
4. Optionally AWS_REGION=<region> if not set in the provider block.
5. Optionally TFC_AWS_PLAN_ROLE_ARN and TFC_AWS_APPLY_ROLE_ARN if using separate roles.
6. Use a Variable Set if multiple workspaces share the role.

Keep the provider block minimal in each environment¶

envs/dev/providers.tf:

provider "aws" {
  region = "eu-central-1"  # or omit and set AWS_REGION in workspace vars
  default_tags {
    tags = {
      environment = "dev"
      service     = var.service
    }
  }
}

No access keys. No profiles. Terraform Cloud injects short-lived credentials at run time.

Run the workspace¶

1. Trigger a plan in Terraform Cloud.
2. Confirm the run log shows dynamic credentials in use and no IMDS lookups.
3. Apply after review.

Troubleshooting¶

• “No valid credential sources found” means the workspace variables are missing or the trust policy does not match the token. Fix the variables or the sub conditions.

• “Invalid audience” means the trust policy expects a different aud. Set app.terraform.io:aud to aws.workload.identity or match your custom audience.

• Access denied during plan or apply means the role’s permissions policy is too narrow. Add the exact actions Terraform needs and re-plan.

Security notes¶

• Lock the trust policy to the specific organisation, project, and workspace to prevent cross-org token reuse.

• Prefer separate roles for plan and apply to enforce read-only during plan if required.

• Use IAM Access Analyzer to validate the trust policy.

• Avoid static keys in Terraform Cloud entirely.

We then apply the configuration in the terraform/envs/dev folder:

task tf-apply-dev

We then check what was provisioned in Terraform Cloud:

We then destroy the infrastructure:

task tf-destroy-dev

For the backend in development we will be using terraform cloud (free for up to 5 users). In production we will be using S3 with Dynamo DB.

Dynamo DB has state locking which prevents concurrent apply commands being executed at the same time.

In dev: Check the setup above

In prod: We first bootstrap the bucket and Dynamo DB table through Terraform then we continue with our normal setup. The provisioning files are in the terraform/envs/prod/bootstrap directory.

Another way is to make use of the terraform-aws-modules/vpc/aws module. This is the solution that we employed in this project.

We have to setup the bootstrap workspace in the terraform cloud as we did for dev

Then:

terraform login # to provide token for
task tf-apply-bootstrap

This creates the state bucket and DynamoDB locking table, along with anything else you have defined in the *.tf file(s). At this point, the Terraform state is still stored locally.

Module terraform_state_backend also creates a new prod-backend.tf file (the name can be changed in the variables) that defines the S3+DB state backend.

We use that configuration for our production backend.tf file.

terraform init --reconfigure # in prod/ directory

# OR IF AND ONLY IF YOU RAN USING LOCAL BACKEND
terraform init --force-copy # Terraform detects that you want to move your state to the S3 backend, and it does so per -auto-approve.

Now the state is stored in the S3 bucket, and the DynamoDB table will be used to lock the state to prevent concurrent modification. This concludes the one-time preparation. Now we can extend and modify our Terraform configuration as usual.

Here’s a finalised version of your MkDocs note with tightened structure, consistent formatting, and no ambiguity:

Destroying bootstrap¶

In this setup:

• Bootstrap runs in Terraform Cloud (remote backend).
• Bootstrap provisions an S3 bucket (devopssean-prod-terraform-state) and a DynamoDB table (devopssean-prod-terraform-state-lock).
• Other environments (prod, staging, dev) are configured to use those backend resources.

If you want to destroy bootstrap and clean up, follow these steps.

1. Check dependencies

2. Confirm that no environments (prod, staging, dev) are still using the bootstrap S3 bucket and DynamoDB table.

3. If they are, migrate them to Terraform Cloud first. Otherwise they will break.

Migration procedure¶

Step 1 – Create Terraform Cloud workspaces

• In Terraform Cloud, create a separate workspace for each environment (prod, staging, dev).
• Point each workspace to the corresponding environment folder in your repository.
• Add AWS credentials or an OIDC role in workspace variables so Terraform Cloud can deploy infrastructure.

Step 2 – Update backend configuration

Replace the S3 backend in each environment’s backend.tf with a Terraform Cloud block:

 terraform {
   cloud {
     organization = "devopssean"

     workspaces {
       name = "prod"   # or staging/dev as appropriate
     }
   }
 }

Remove the old backend "s3" block entirely.

Step 3 – Re-initialise with migration

In each environment folder:

terraform init --migrate-state

Terraform will:

• Detect the backend change (S3 → Terraform Cloud).
• Prompt to migrate state.
• Move .tfstate from S3 into Terraform Cloud.

For automation, use:

terraform init --migrate-state --force-copy

Step 4 – Validate

• In Terraform Cloud, check that each workspace now shows existing resources.
• Run terraform plan to confirm there is no drift.

Step 5 – Destroy bootstrap

Once all environments are migrated:

cd envs/prod/bootstrap
task tf-destroy-bootstrap

This deletes the S3 bucket, DynamoDB table, and any other bootstrap resources.

Risks if skipped

• If you destroy bootstrap first, the S3 bucket and DynamoDB table are lost. Then terraform init --migrate-state cannot read the old state, and environments will behave as if they are fresh deployments (risk of duplicate resources).

• Go to bootstrap folder

cd envs/prod/bootstrap

1. Destroy bootstrap resources

task tf-destroy-bootstrap

This removes the backend bucket, DynamoDB table, and all other bootstrap resources.

1. Verify state

2. Bootstrap workspace in Terraform Cloud should show 0 resources.

3. S3 should no longer have a bucket named devopssean-prod-terraform-state.
4. DynamoDB should no longer have a table named devopssean-prod-terraform-state-lock.
