Terraform Essentials for DevOps¶

Core Blocks¶

These are the most important Terraform configuration blocks for DevOps tasks:

• provider

Defines the infrastructure platform (e.g., AWS, Azure, GCP).

• resource

Provisions infrastructure components like servers, databases, and networks.

• variable

Declares input values to parameterise configurations.

• output

Exposes values (like IP addresses, URLs) after deployment.

• module

Organises and reuses Terraform configurations for better structure and DRY code.

• locals

Defines local values to simplify expressions and avoid repetition.

Sometimes Used¶

• data

Retrieves existing resources from the provider (e.g., latest AMI, existing VPC).

• terraform

Configures backend settings (e.g., for remote state storage with S3, GCS).

Resource vs Module¶

When to use which:

• If you want fine-grained control or need something not covered by a module → use provider resources directly from the AWS provider docs.

• If you want faster, standardised setups (VPC, RDS, ECS, S3) → use the terraform-aws-modules modules, pinned to a version.

Terraform Cheat Sheet¶

Provider¶

Defines the cloud or infrastructure platform.

provider "aws" {
    region = var.aws_region
}

Resource¶

Creates and manages infrastructure components.

resource "aws_instance" "web" {
    ami           = var.ami_id
    instance_type = var.instance_type
    tags = {
    Name = "web-server"
    }
}

Variable¶

Allows configuration reuse and customization.

variable "instance_type" {
    type    = string
    default = "t2.micro"
}

Usage:

instance_type = var.instance_type

Output¶

Exposes values after deployment.

output "web_ip" {
    value = aws_instance.web.public_ip
}

Module¶

Organises and reuses configuration.

module "vpc" {
    source = "./modules/vpc"
    cidr   = var.vpc_cidr
}

Locals¶

Simplifies logic and avoids repetition.

locals {
    subnet_cidrs = [
    cidrsubnet(var.vpc_cidr, 8, 1),
    cidrsubnet(var.vpc_cidr, 8, 2),
    ]
}

Data Source¶

Pulls in external or existing infrastructure.

data "aws_ami" "ubuntu" {
    most_recent = true
    owners      = ["099720109477"]
    filter {
    name   = "name"
    values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]
    }
}

Terraform Block¶

Configures version and remote state settings.

terraform {
    required_version = ">= 1.0.0"
    backend "s3" {
    bucket         = "tf-state-bucket"
    key            = "prod/terraform.tfstate"
    region         = "eu-west-1"
    dynamodb_table = "tf-lock"
    }
}

Quick Glossary¶

DevOps Pro Tips¶

• Use remote state with locking in team settings (terraform block).
• Break infrastructure into modules for reuse and clarity.
• Always pin versions of Terraform and providers.
• Use data to avoid bloating state with existing infra.
• Apply consistent naming for better collaboration.

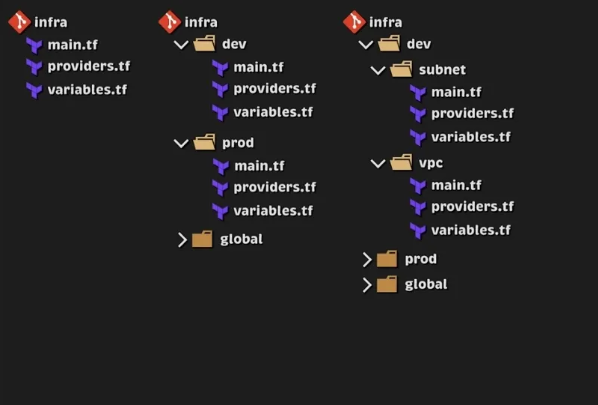

Version 3 - Each TF module in its own git repo with versioning (typical repo name: terraform-{provider}-{module} (e.g terraform-aws-vpc).

Then inside you would have the normal TF files → main, variables, outputs, versions, etc.

Then, after git commit, you git tag x.x.x, then push with -- tags. Now, in the main of each module, reference the git link with the tag as a source in the module resource

When changes are made to the module, push with a new version number. This can get cumbersome if there are too many repo modules so it's best to use reuseable modules across the microservices.

My current Stack¶

Local Development¶

Production¶

Terraform Command Cheat Sheet¶

Initialisation and Setup¶

terraform init            # Initialise working directory, install providers, configure backend
terraform init -upgrade   # Upgrade provider plugins
terraform workspace list  # List workspaces
terraform workspace new <name>  # Create new workspace
terraform workspace select <name>  # Switch workspace

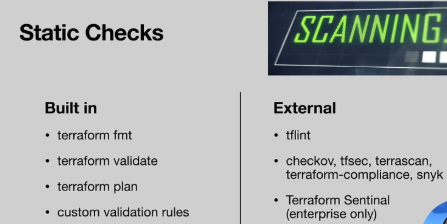

Validation and Formatting¶

terraform fmt             # Auto-format .tf files
terraform validate        # Validate syntax and internal consistency
terraform providers       # List providers required by configuration

Planning¶

terraform plan                          # Show execution plan
terraform plan -out=tfplan              # Save plan to file
terraform show tfplan                   # Show saved plan in human-readable form
terraform show -json tfplan > plan.json # Output plan in JSON

Applying¶

terraform apply                         # Apply with interactive approval
terraform apply -auto-approve           # Apply without prompt
terraform apply tfplan                  # Apply previously saved plan

Destroying¶

terraform destroy                       # Destroy managed infrastructure
terraform destroy -target=aws_instance.my_vm  # Destroy specific resource

State Management¶

terraform state list                    # List resources in state
terraform state show <resource>         # Show details of one resource
terraform state rm <resource>           # Remove resource from state
terraform state mv <src> <dst>          # Move resource in state
terraform refresh                       # Sync state with real infrastructure

Importing¶

terraform import <resource> <id>        # Import existing infra into state

Output¶

terraform output                        # Show all outputs
terraform output <name>                 # Show specific output
terraform output -json                  # JSON output

Graphing¶

terraform graph | dot -Tpng > graph.png # Generate dependency graph
