General notes before we begin¶

There are 3 Ways to Monitor Your App in Kubernetes

1. Basic container & node monitoring (built-in)¶

Kubernetes already integrates with:

kubelet/cAdvisor → container & pod-level resource usage (CPU, memory, network, filesystem).
Node Exporter → node-level OS metrics.

If you deploy Prometheus (via Helm or the Operator), these metrics are automatically discovered and scraped — no extra setup required.

2. App-specific exporters (most common in K8s)¶

Many apps expose metrics directly, or you deploy an exporter sidecar or Service:

Nginx → nginx-prometheus-exporter
Postgres → postgres_exporter
MySQL → mysqld_exporter
Redis → redis_exporter

Example: Nginx Exporter Deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
      - name: nginx-exporter
        image: nginx/nginx-prometheus-exporter:0.11.0
        args:
          - -nginx.scrape-uri=http://127.0.0.1:80/stub_status
        ports:
        - containerPort: 9113

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: nginx-exporter
spec:
  selector:
    matchLabels:
      app: nginx
  endpoints:
  - port: 9113

The ServiceMonitor CRD (from the Prometheus Operator) ensures Prometheus automatically discovers and scrapes the exporter.

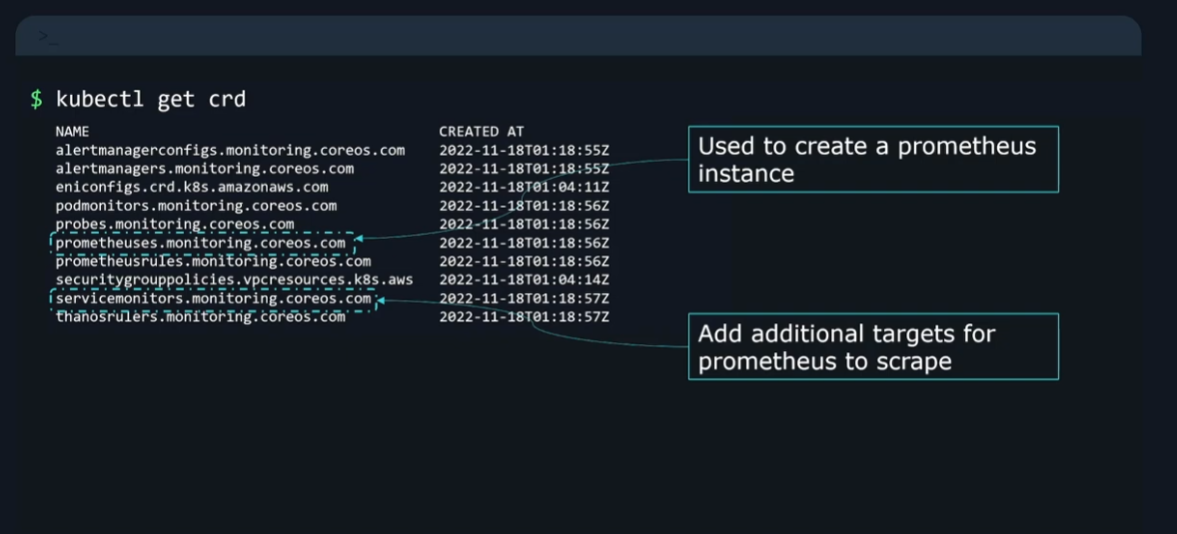

To list all available CRDs use:

kubectl get crd

3. Custom metrics (for apps you write)¶

If you’re building your own application, you can instrument it with OpenTelemetry or a Prometheus client library:

Example: Python Flask app exposing /metrics

from flask import Flask
from prometheus_client import Counter, generate_latest

app = Flask(__name__)
requests_total = Counter('app_requests_total', 'Total requests')

@app.route('/')
def hello():
    requests_total.inc()
    return "Hello, Kubernetes!"

@app.route('/metrics')
def metrics():
    return generate_latest(), 200, {'Content-Type': 'text/plain'}

Deploy the app with a Kubernetes Deployment and expose /metrics. Then define a ServiceMonitor to let Prometheus scrape it.

Infra metrics → kubelet/cAdvisor + Node Exporter.
App metrics → Exporters (Nginx, DBs, etc.) or custom instrumentation.
Prometheus scrapes everything; Grafana dashboards visualize it.

What OpenTelemetry Adds¶

Instrumentation SDKs → for Go, Python, Java, Node.js, .NET, etc.
Collects application metrics, traces, and optionally logs.
Works via an OpenTelemetry Collector deployed as:
A sidecar (per pod)
A DaemonSet (per node)
A Deployment (central collector)

Backends supported:

Prometheus (metrics)
Jaeger / Tempo (traces)
Loki / ELK (logs)
Grafana Cloud or OTLP-compatible vendors

🛠 How It Works in Kubernetes¶

Right now you likely have:

Prometheus + Grafana → metrics + visualization
kubelet/cAdvisor + Node Exporter → infra metrics

If you add OpenTelemetry for your app:

Instrument your code with the OTel SDK.
Deploy an OpenTelemetry Collector (Deployment or DaemonSet).
Configure it to export metrics in Prometheus format (scrapable endpoint).

Example: OTel Collector in Kubernetes¶

Deploy the collector:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: otel-collector
spec:
  replicas: 1
  selector:
    matchLabels:
      app: otel-collector
  template:
    metadata:
      labels:
        app: otel-collector
    spec:
      containers:
      - name: otel-collector
        image: otel/opentelemetry-collector-contrib:0.95.0
        args: ["--config=/etc/otel/otel-collector-config.yaml"]
        volumeMounts:
        - name: config
          mountPath: /etc/otel
      volumes:
      - name: config
        configMap:
          name: otel-collector-config

apiVersion: v1
kind: ConfigMap
metadata:
  name: otel-collector-config
data:
  otel-collector-config.yaml: |
    receivers:
      otlp:
        protocols:
          grpc:
          http:

    exporters:
      prometheus:
        endpoint: "0.0.0.0:9464"

    service:
      pipelines:
        metrics:
          receivers: [otlp]
          exporters: [prometheus]

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: otel-collector
spec:
  selector:
    matchLabels:
      app: otel-collector
  endpoints:
  - port: 9464

Now:

Your app sends OTLP data to the Collector (4317/4318).
The Collector exposes Prometheus metrics on :9464.
Prometheus scrapes them via the ServiceMonitor.

Why OTel is a Good Idea in Kubernetes¶

Cloud-native standard → portable across Prometheus, Grafana, Jaeger, Tempo, etc.
Future-proof → works with managed observability platforms (Datadog, New Relic, Grafana Cloud, etc.).
Full observability → unifies metrics, traces, and logs, not just CPU/memory.

Adding any app to the stack¶

How to instrument any app for this stack (kube-prometheus-stack, Loki, Alertmanager, Grafana). This is the app-side view only.

1. Logs → Loki (via Promtail)¶

Best practice: apps write logs to stdout/stderr.
Kubernetes writes container logs to /var/log/containers/*.log.
Promtail DaemonSet (from Loki Helm chart) already tails these files.
Labels: Promtail auto-labels with namespace, pod, container, and app_kubernetes_io/name.
App requirements:
Use structured logging (JSON preferred).
Include severity, service name, request ID, etc. as fields. Promtail can parse JSON and promote fields to labels.
Trade-off:
Too many labels = high cardinality → Loki performance issues.
Use pipeline stages (drop, replace, json) to balance.

2. Metrics → Prometheus¶

kube-prometheus-stack deploys Prometheus Operator with ServiceMonitor/PodMonitor CRDs.
Expose /metrics endpoint in the app:
Prometheus client libraries exist for Go, Python, Java, Node.js, etc.
Instrument key business metrics (requests, errors, durations).
App requirements:
Export metrics in Prometheus text format.
Add a Kubernetes Service with proper label selectors.
Create a ServiceMonitor that points to the Service.
Alerting:
Prometheus alerts are routed to Alertmanager, which you have configured.
Ensure metric names and labels are consistent with your alert rules.

3. Traces → OpenTelemetry (OTel)¶

Use the OpenTelemetry SDK in your app to generate spans.
Export traces to the OTel Collector running in your cluster.
Collector pipelines:
Metrics → Prometheus remote-write (kube-prometheus-stack).
Logs → Loki (via OTLP → Loki exporter, or side-car Promtail).
Traces → Tempo or Jaeger (Grafana Tempo is the common pair with Loki).
App requirements:
Add OTel SDK instrumentation for HTTP, gRPC, DB calls.
Configure OTLP exporter to send to Collector endpoint.

4. Dashboards → Grafana¶

Grafana in kube-prometheus-stack provisions Prometheus and Loki as datasources.
For app dashboards:
Metrics: build panels from /metrics data.
Logs: query {app="myapp"} in Explore or add log panels.
Traces: if Tempo integrated, add trace panels.
Repeatability:
Store dashboards as JSON in Git.
Provision them via ConfigMap + sidecar (grafana_dashboard=1) or GitOps pipeline.

5. Alerting¶

Already handled via Alertmanager.
App instrumentation must expose metrics that can be turned into SLO alerts, e.g.:
http_requests_total (rate of requests).
http_request_duration_seconds (latency).
http_requests_errors_total (error rate).
Alerts are defined as Prometheus rules, not app-side.

6. DevOps repeatability checklist¶

For any app:

Logging:
stdout/stderr JSON logs.
Use structured fields: level, service, trace_id.
Confirm Promtail pipeline parses correctly.
Metrics:
Add Prometheus client library.
Expose /metrics.
Apply Service + ServiceMonitor.
Tracing (optional but recommended):
Add OTel SDK.
Configure OTLP export → OTel Collector.
Dashboards:
Provision JSON dashboards via ConfigMaps or grafana.dashboards Helm values.
Tie logs, metrics, traces together using consistent labels (e.g. service_name).
Alerts:
Define PrometheusRules based on app metrics.
Ensure routes in Alertmanager are set to notify the right channel/team.

This makes any app pluggable into your stack: Prometheus Operator scrapes metrics, Promtail collects logs, OTel provides traces, Grafana visualises, Alertmanager handles alerts.

Here is a golden template you can drop into any microservice repo to instrument it for your stack (kube-prometheus-stack, Loki, Grafana, Alertmanager, OpenTelemetry).

It is language-agnostic in structure, then broken into logging, metrics, and tracing.

📄 Golden Template for App Instrumentation¶

1. Logging → Loki¶

App code:

Always log to stdout/stderr.
Use JSON format.
Include consistent fields:

{
  "timestamp": "2025-09-27T20:15:32Z",
  "level": "info",
  "service_name": "myapp",
  "trace_id": "abc123",
  "span_id": "def456",
  "message": "user login success",
  "http_method": "POST",
  "http_status": 200
}

Why:

Promtail DaemonSet already tails /var/log/containers/*.log.
JSON fields can be promoted to Loki labels (http_status, level, service_name).

Promtail pipeline (values.yaml snippet):

extraScrapeConfigs: |
  - job_name: kubernetes-pods-apps
    pipeline_stages:
      - json:
          expressions:
            level: level
            service_name: service_name
            http_status: http_status
      - labels:
          level:
          service_name:
          http_status:

2. Metrics → Prometheus¶

App code:

Import Prometheus client library.
Expose /metrics endpoint.

Example (Python / FastAPI):

from prometheus_client import Counter, Histogram, generate_latest
from fastapi import FastAPI, Response, Request
import time

app = FastAPI()

REQ_COUNT = Counter("http_requests_total", "Total requests", ["method", "endpoint", "http_status"])
REQ_LATENCY = Histogram("http_request_duration_seconds", "Request latency", ["method", "endpoint"])

@app.middleware("http")
async def metrics_middleware(request: Request, call_next):
    start = time.time()
    response = await call_next(request)
    duration = time.time() - start
    REQ_COUNT.labels(request.method, request.url.path, response.status_code).inc()
    REQ_LATENCY.labels(request.method, request.url.path).observe(duration)
    return response

@app.get("/metrics")
async def metrics():
    return Response(content=generate_latest(), media_type="text/plain")

Kubernetes Service:

apiVersion: v1
kind: Service
metadata:
  name: myapp
  labels:
    app: myapp
spec:
  ports:
    - name: http
      port: 80
      targetPort: 8080
  selector:
    app: myapp

ServiceMonitor:

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: myapp
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app: myapp
  endpoints:
    - port: http
      path: /metrics
      interval: 30s

3. Tracing → OpenTelemetry¶

App code (Python / FastAPI example):

from opentelemetry import trace
from opentelemetry.instrumentation.fastapi import FastAPIInstrumentor
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.trace.export import BatchSpanProcessor

# Configure tracer
provider = TracerProvider()
processor = BatchSpanProcessor(OTLPSpanExporter(endpoint="http://otel-collector:4318/v1/traces"))
provider.add_span_processor(processor)
trace.set_tracer_provider(provider)

# Instrument FastAPI
FastAPIInstrumentor().instrument_app(app)

Collector config (values.yaml for opentelemetry-collector):

config:
  receivers:
    otlp:
      protocols:
        http:
        grpc:

  exporters:
    loki:
      endpoint: http://loki-gateway.k8s-monitoring-ns.svc.cluster.local/loki/api/v1/push
    prometheus:
      endpoint: "0.0.0.0:8889"
    tempo:
      endpoint: http://tempo:4317
      insecure: true

  service:
    pipelines:
      traces:
        receivers: [otlp]
        exporters: [tempo]
      metrics:
        receivers: [otlp]
        exporters: [prometheus]
      logs:
        receivers: [otlp]
        exporters: [loki]

4. Dashboards → Grafana¶

Store dashboards as JSON in Git.
Provision using ConfigMap with grafana_dashboard: "1" label.

apiVersion: v1
kind: ConfigMap
metadata:
  name: myapp-dashboard
  labels:
    grafana_dashboard: "1"
data:
  myapp-dashboard.json: |
    { "title": "MyApp Dashboard", "panels": [...] }

5. Alerts → Alertmanager¶

Write PrometheusRule CRs for your app metrics.

apiVersion: monitoring.coreos.com/v1
kind: PrometheusRule
metadata:
  name: myapp-rules
spec:
  groups:
    - name: myapp.rules
      rules:
        - alert: HighErrorRate
          expr: rate(http_requests_total{http_status=~"5.."}[5m]) > 0.05
          for: 2m
          labels:
            severity: warning
          annotations:
            summary: "High error rate for myapp"
            description: "More than 5% of requests are failing"

Checklist for any app¶

Logs in JSON to stdout.
Prometheus client library, /metrics endpoint.
OTel SDK exporting to Collector.
Service + ServiceMonitor in cluster.
Dashboard JSON under Git.
PrometheusRule alerts defined.

Later you clould package this into a starter Helm chart skeleton for apps so you can just scaffold new services with logging, metrics, and tracing prewired?
